Zeca 9100/6 Air Hose Reel
The Zeca 9100/6 Air Hose Reel offers reliable hose storage and smooth retraction for compressed air applications in work...
View
Professional automatic hose reel with a durable PVC/PU hose, swivelling metal mounting bracket and adjustable hose-stop mechanism. Available with an 8 mm × 12 m hose or a higher-flow 10 mm × 9 m hose.
| Image | Model No. |
|---|---|
|
9100/6 |
|

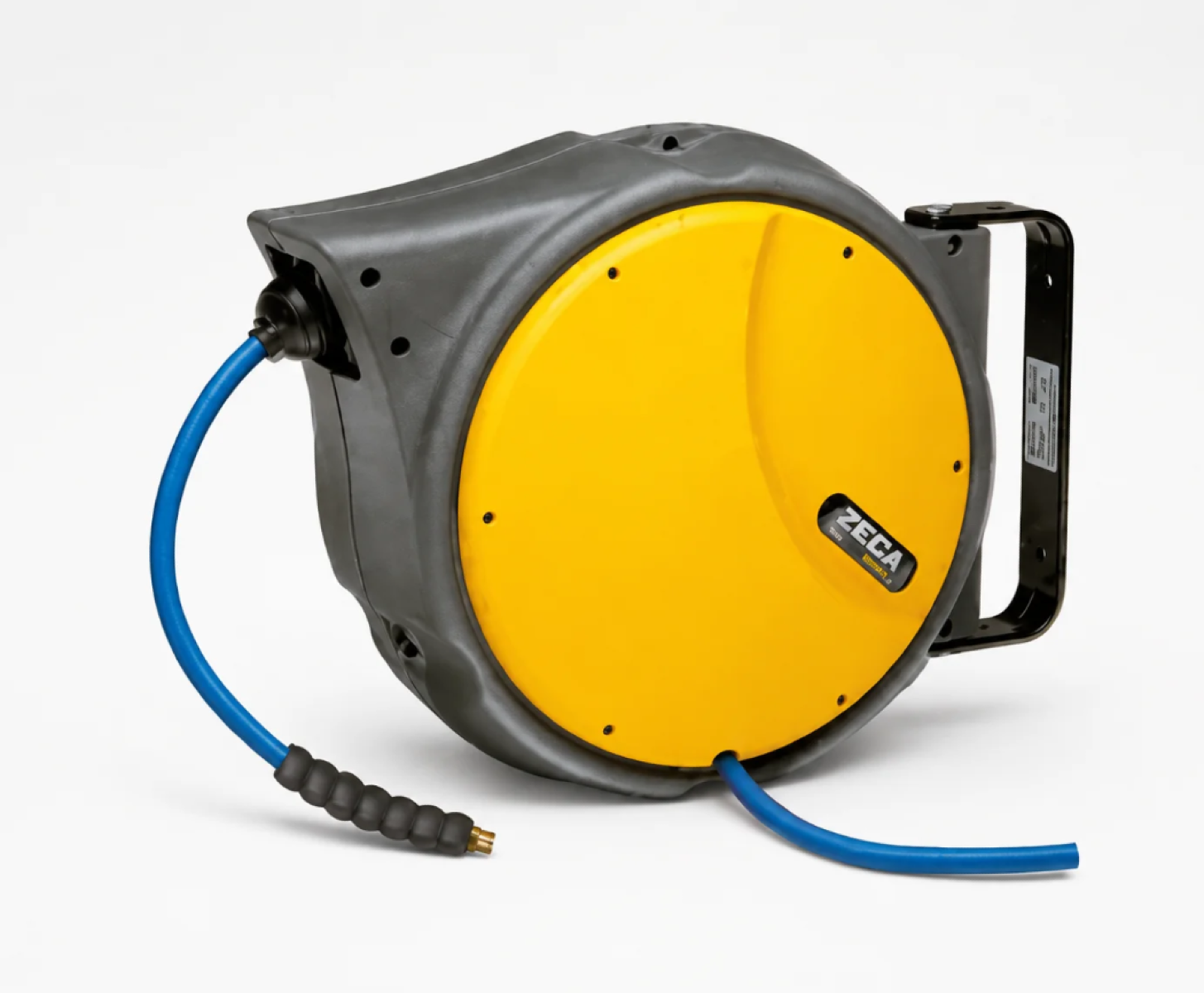

AM80/8 & AM85/10 |
|

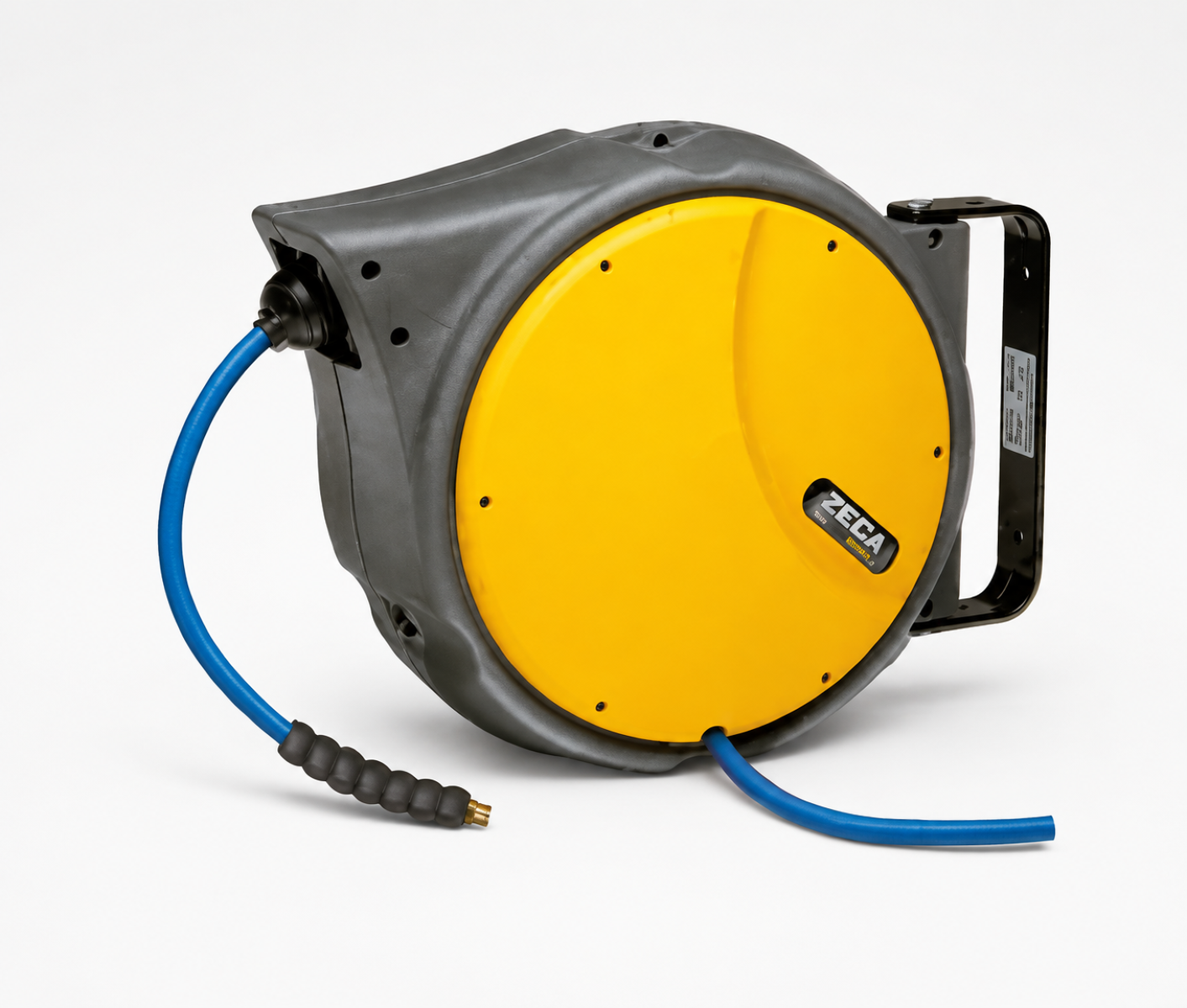

AM86/10 & AM86/13 |
|

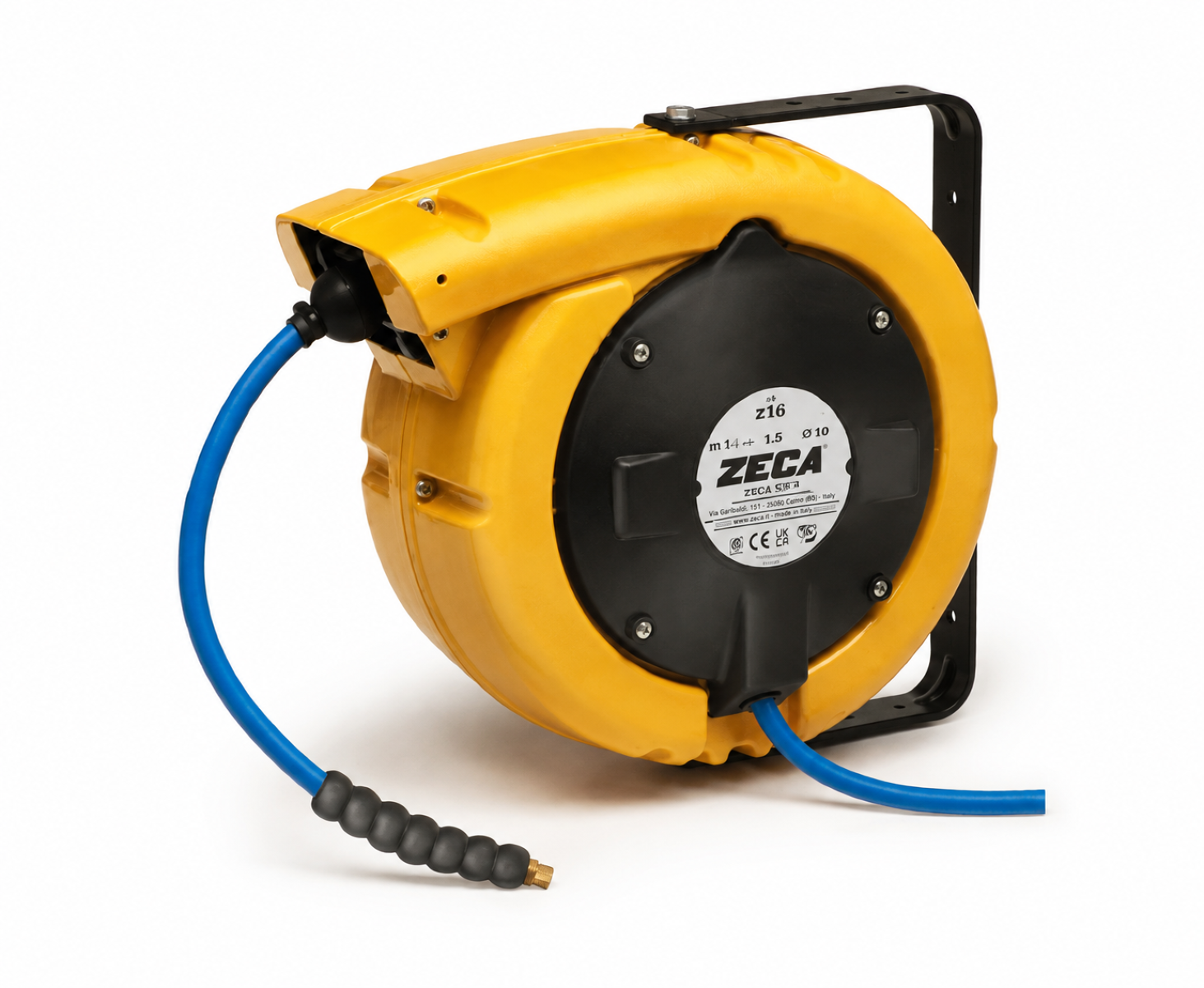

AM813/8 & 813/10 |
Choose the 813/8 when a longer working reach is the priority. Choose the 813/10 when the connected pneumatic equipment requires greater airflow through a larger-diameter hose.
Contact Entrepot with your pneumatic tool, required airflow and installation location for help selecting the appropriate hose reel.
Model: 813/8
Internal diameter: 8 mm (5/16")
Hose length: 12 m
Connection hose: 2 m
Maximum pressure: 12 bar
Outlet fitting: 1/4" M BSP
Inlet connection: 1/4" M
Model: 813/10
Internal diameter: 10 mm (3/8")
Hose length: 9 m
Connection hose: 2 m
Maximum pressure: 12 bar
Outlet fitting: 3/8" M BSP
Inlet connection: 3/8" M
Series: ZECA 813
Pressure category: Low pressure
Maximum pressure: 12 bar
Operating temperature: -5°C to +40°C
Hose material: PVC/PU
Hose colour: Opaque blue
Reel colour: Yellow
Suitable fluids: Air and water
ATEX approved: No
Dimensions: 550 × 505 × 270 mm
Weight: 10 kg
